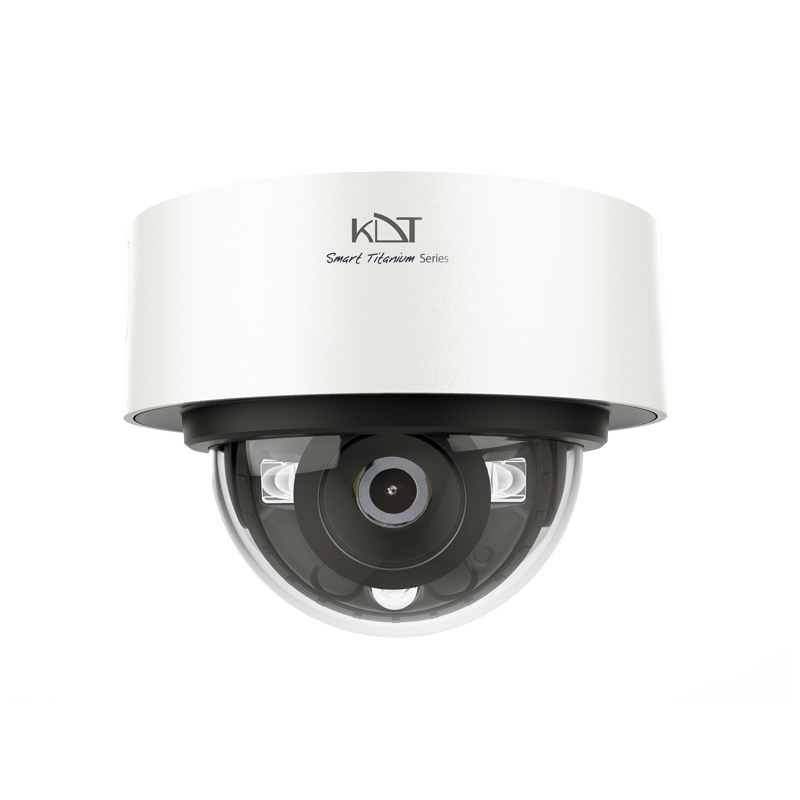

KI-D15ST80F-i30TSMU
30~40 m Smart IR SMD Technology
3.6mm Fixed Lens @F1.6, (2.8mm Optional)
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
30~40 m Smart IR SMD Technology
3.6mm Fixed Lens @F1.6, (2.8mm Optional)
Innovative Technology | Reliable Quality | End-to-End Service
> 8MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
> 3.6 mm Fixed Lens @F1.6, (2.8 mm Optional)
> Dual-Core ARM Cortex-A7@900 MHz
> 30fps@ 6MP(3200*1800), 30fps@ 4MP, 90fps@ 2MP
> H.264+(Ultra H.264), H.265+ (Ultra H.265)
> Support PoE
> Triple Stream (Video Bit Rate:11 Kbps~16 Mbps)
> IP67, IK10, 6KV Surge Protection
> پشتیبانی از میکرو SD با ظرفیت 256GB
> بدنــه ضد آب و گـرد و غبـــار با درجه IP67, IK10
> ســـرور انتقـــال تصویـــر در ایــران
> پشتیبـــانی از + H.264+ / H.265
> پشتیبـــانـــی از ONVIF ورژن 2.6
> قـــابلیت دیـد در شب هـوشمنــد
> قابلیت WDR, BLC, HLC, Defog و ROI تا 8 ناحیه
> پشتیبانی از ضبط اضطراری ANR
> پشتیبانی از تکنولوژی تثبیت تصویر EIS
> پشتیبانی از تکنولوژی هوشمند نقشه گرمایشی
> پنج سال گارانتی طلایی بدون قید و شرط کی دی تی
> شش سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 8MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Lens | 3.6mm Fixed Lens @F1.6, (2.8 mm Optional) |
| Resolution | 3840*2160 (8MP) |
| Available IR Range | 30~40 M Smart IR SMD Technology (3 pcs IR SMD) 20 m Warm Light Technology (3 pcs Warm Light) Smart Light Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.001 lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angel of View | H-FOV: 89° –(108°)*, V-FOV:46° –(58°)*, D-FOV: 106° –(128°)* |
| Night Vision | Dual Light Technology |
| Picture Adjust | |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Image Stabilization | Yes (EIS)/ |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N | > 56dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 8MP(3840*2160), 30fps@ 6MP, 30fps@ 4MP, 90fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smartphone | IOS, Android Phone & Tablet |
| Function | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 13 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Face Detection, Smart People Counting, Crowd Density Monitorring, Heat Map |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Internal Mic, Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| IP Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 8.5 Watt |
| Web Language | English, Persian |
| Dimension | 110*91.8 mm |
| Weight | 852g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificate | EN, CN, FCC, CFR |
| Image Sensor | 8MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
|---|---|
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Lens | 3.6mm Fixed Lens @F1.6, (2.8 mm Optional) |
| Resolution | 3840*2160 (8MP) |
| Available IR Range | 30~40 M Smart IR SMD Technology (1pcs IR SMD)20 m Warm Light Technology (2 pcs Warm Light)Smart Light Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.001 lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angel of View | H-FOV: 89° –(108°)*, V-FOV:46° –(58°)*, D-FOV: 106° –(128°)* |
| Night Vision | Dual Light Technology |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N | > 56dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 8MP(3840*2160), 30fps@ 4MP, 30fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smartphone | IOS, Android Phone & Tablet |
| Recording | FTP, NVR, CMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 10 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Face Detection |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Internal Mic, Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| IP Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 8.5 Watt |
| Web Language | English, Persian |
| Dimension | 110*91.8 mm |
| Weight | 852g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificate | EN, CN, FCC, CFR |
