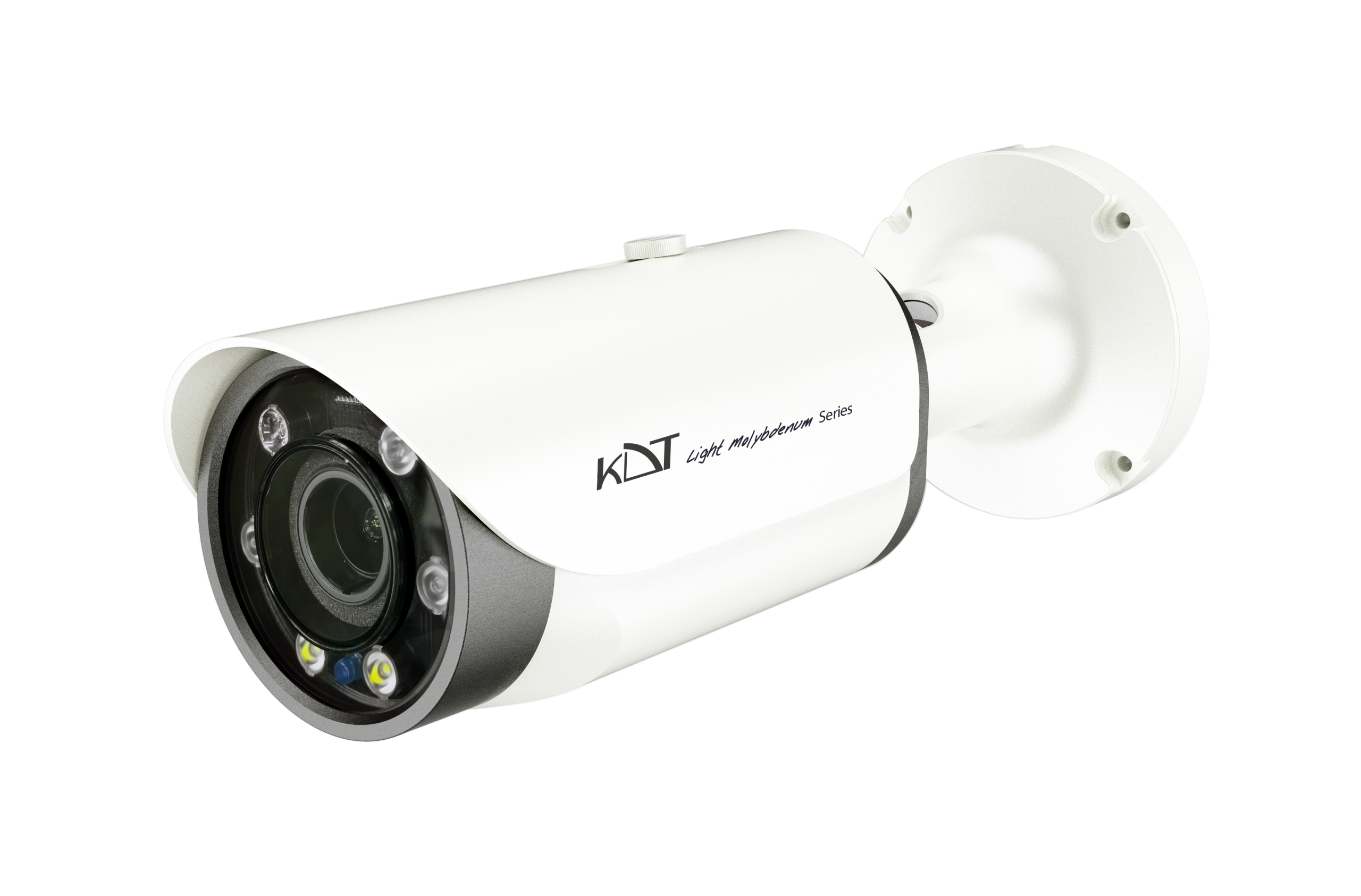

KI-L45LM30A-L

40~50 m White Light Technology 5~50mm Motorized 10X Optical Zoom Full Color

PRODUCTS

Innovative Technology | Reliable Quality | End-to-End Service

دوربین مداربسته کی دی تی مدل KI-L45LM30A-L

سایر برتری ها:

  • بدنــه ضد آب و گـرد و غبـــار با درجه IP67
  • پشتیبـــانی از + H.264 / H.265
  • پشتیبـــانـــی از ONVIF ورژن 2.4
  • قابلیت WDR, BLC, HLC

KI-L45LM30F-L

3MP Bullet Network Camera
  • 3MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
  • 5~50mm Motorized 10X Optical Zoom Fast Auto Focus Lens
  • 40~50 m White Light Technology (6 pcs White Light)
  • 30fps@(2304×1296)
  • Dual-Core ARM 2 x A53@1400 MHz
  • PoE LAN, DC In
  • Dual Stream (Code Rate: 128kbps-10mbps)
  • IP67, IK10, 6KV Surge Protection
  • Manual, Motion Detection, Schedule

شرایط گارانتی :

  • دو سال گارانتی طلایی بدون قید و شرط کی دی تی
  • سه سال ضمانت پایداری کیفیت تصویر
  • شامل: آبخوردگی، شکستگی، ضربه دیدگی، خسارت ناشی از صاعقه، زنگ زدگی، نوسانات برق، سایر اتفاقات و صدمات
دانلود دیتاشیت
دانلود نرم افزار
Camera
Image Sensor3MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8″) Ultra-Low-illumination
CPUDual-Core ARM 2 x A53 @1400 MHz
Lens5~50mm Motorized 10X Optical ZoomFast Auto Focus Lens
Resolution2304*1296 (3MP)
Available IR Range40*50 m White Light Technology (6 pcs White Light)
D/N FilterColor
Min illuminationColor: 0.003 Lux(AGC on) – B/W: 0.0 Lux(White Light on)
Angle of ViewH-FOV: 50°3’6″, V-FOV: 36°2’9″, D-FOV: 69°5′
Night VisionFull Color
Picture Adjust
Picture Function120dB WDR/DWDR, 2D/3D DNR, BLC, HLC
Shutter SpeedManual (1/3 ~ 1/8,000), Auto (Image Algorithm)
Image Parameter ControlOff, On, Timing (Adjust 0 ~ 255)
D/N ControlTiming, Auto, Color on, Color off
Image ParameterSaturation, Brightness, Contrast, Sharpness, Hue
Video / Audio
Video CompressionH.264 (Ultra H.264), H.265+ (Ultra H.265) MJPEG
Audio CompressionN/A
Frame Rate(60Hz)30fps@ (2304×1296)
Transmission StreamDual Stream (Code Rate: 128kbps-10mbps)
Network
ProtocolsRTSP/PPPOE/DHCP/DDNS/NTP/UPnP/SNTP
CompatibilityOnvif Ver2.4, Profile S
Streaming MethodUnicast, Multicast
Web ViewerInternet Explorer
Interface
Network1 RJ45 (10M / 100M) Ethernet Port
AudioN/A
AlarmN/A
CVBSN/A
PowerPoE LAN, DC In
Memory SlotN/A
Reset ButtonN/A
Function
RecordingFTP, NVR, CMS, VMS
Record TypeManual, Motion Detection, Schedule
General
Protection RatingIP67, IK10, 6KV Surge Protection
Power SupplyDC12V ± 10%
POE SupplyIEEE802.3af – Max 11 Watt
Web LanguageEnglish
Dimension275*102 mm
Weight1.2 Kg
Operation HumidityHumidity 95% or less (non-condensing)
Operation Temp-30°C ~ +60°C
Guarantee
Product Guarantee2 Years Silver Guarantee
MTBF100K hrs min. MIL-HDBK-217F (25°)
CertificatesEN, CN, FCC, CFR
