KI-B47SE80A-i50TSLM
50~60 M Smart IR SMD Technology
2.7~13.5 mm @F1.6, Motorized
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته بالت کی دی تی مدل KI-B47SE80A-i50TSLM
قابلیت های هوشمند:
> عبور از خط
> فنــس مجـــازی
> ورود به منطقـه
> خــروج از منطقـه
> تردد شمـار افــراد
> تشخیص چهره
> تشخیص حرکت سریـع افـــراد
> تشخیص تغییــر زاویـه دوربیــن
> تشخیص پرســه زنـی افـراد
> تشخیص صدای غیر عـادی
> تشخیص عدم فوکـوس لنــز

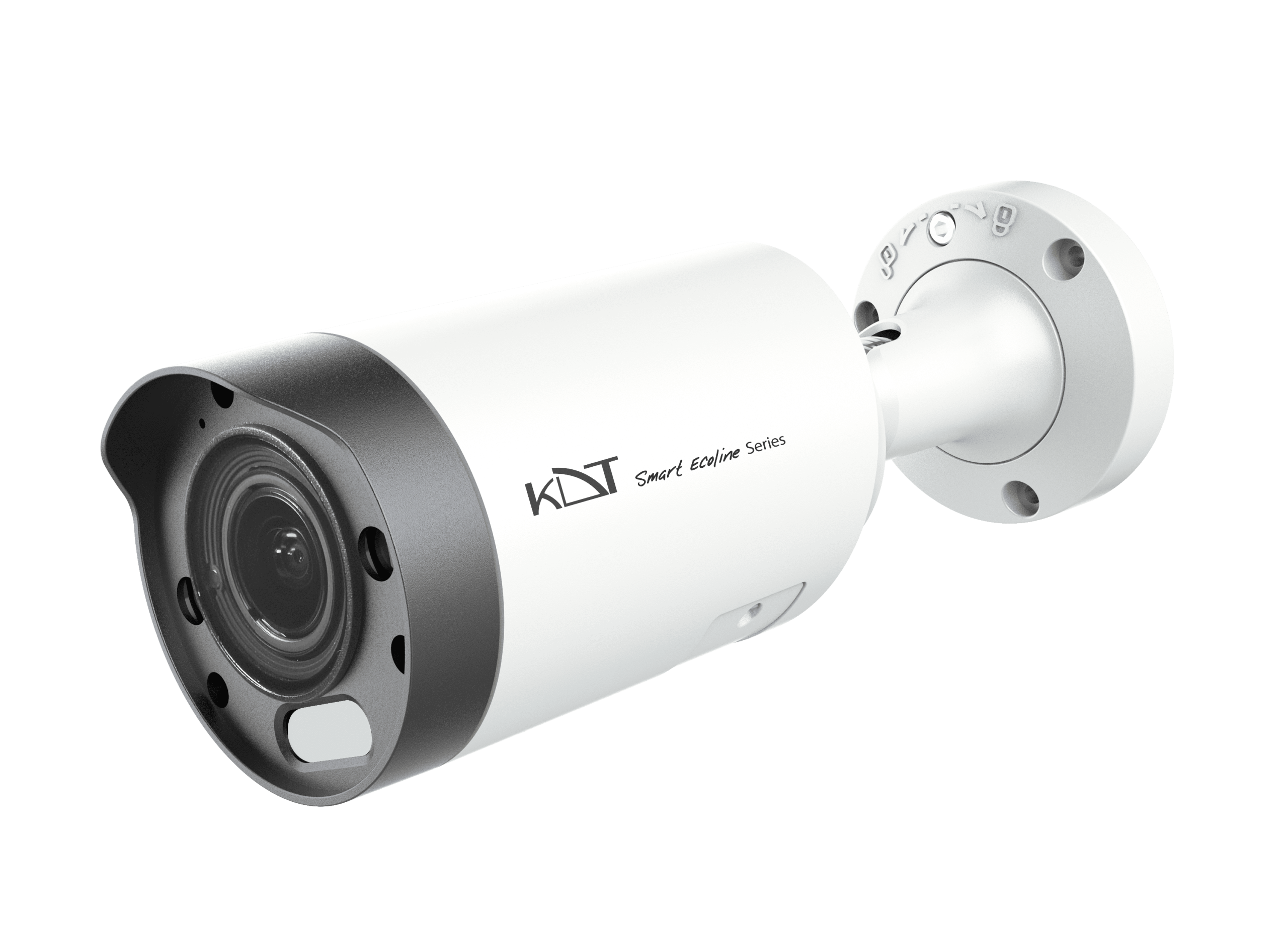

KI-B47SE80A-i50TSLM
8MP Bullet Network Camera
> 8MP Progressive scan Cmos Sensor (1/2.7”)
> 2.7~13.5 mm @F1.6, Motorized Fast Auto Focus Lens
> H.264+(Ultra H.264), H.265+ (Ultra H.265)
> 20fps@ 8MP (3840*2160), 20fps@ 6MP, 30fps@ 4MP, 30fps@ 2MP
> Dual-Core ARM Cortex-A7@900 MHz
> Support PoE
> Triple Stream (Video Bit Rate:11 Kbps~10 Mbps)
> IP67, IK10, 6KV Surge Protection
> Internal Mic, Audio In, Audio Out
سایر برتری ها :
> پشتیبانی از میکرو SD با ظرفیت 256Gb
> بدنــه ضد آب و گـرد و غبـــار با درجه IP67
> ســـرور انتقـــال تصویـــر در ایــران
> پشتیبـــانی از +H.264+ / H.265
> پشتیبـــانـــی از ONVIF ورژن 2.6
> قـــابلیت دیـد در شب هـوشمنــد
> قابلیت WDR, BLC, HLC, Defog
> پشتیبانی از ضبط اضطراری ANR
شرایط گارانتی :
> دو سال گارانتی نقره ای بدون قید و شرط کی دی تی
> سه سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 8MP Progressive scan Cmos Sensor (1/2.7”) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 2.7~13.5 mm @F1.6, Motorized Fast Auto Focus Lens |
| Resolution | 3840*2160 (8MP) |
| Available IR Range | 50~60 M Smart IR SMD Technology Smart White light Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.006 Lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View |
H-FOV: 86°~30°, V-FOV: 50°~19°, D-FOV: 105°~60° |
| Night Light |
Color /IR |
| Picture Adjust | |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog, Rotate |
| Shutter Speed | Manual (1/3 ~ 1/10.000), Auto |
| Image Parameter Control |
Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N |
> 52dB |
| Image Parameter |
Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 20fps@ 8MP (3840*2160), 20fps@ 6MP, 30fps@ 4MP, 30fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~8 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
| Compatibility | Onvif Ver2.6,Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device |
IOS, Android Phone & Tablet |
| Function | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light |
| Event |
Motion Detection, Video Shelter |
| Intelligent Function | 11 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Crossing Line Statistics, Face Detection |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Internal Mic, Audio Out, Audio In |
| Alarm | N/A |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button |
Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| IP Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 11 Watt |
| Web Language | English, Persian |
| Dimension | 220*76 mm |
| Weight | 850 g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Guarantee | |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
