KI-AXZ100LM20A-TS
2MP Cmos Sensor
2.8~12 mm Motorized
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته کی دی تی مدل KI-AXZ100LM20A-TS
سایر برتری ها:
> بدنــه ضد آب و گـرد و غبـــار با درجه IP68
> بدنه ضد ضربه با استاندارد IK10
> ضد انفجار
> جنس بدنه از استیل
> جنس پایه از استیل 304 یا 316
> جنس شیشه از کوارتز مقاوم در برابر دما
> پشتیبـــانی از H.264 / H.265/MJPEG
> پشتیبـــانـــی از ONVIF
> قابلیت WDR, BLC, HLC, Defog

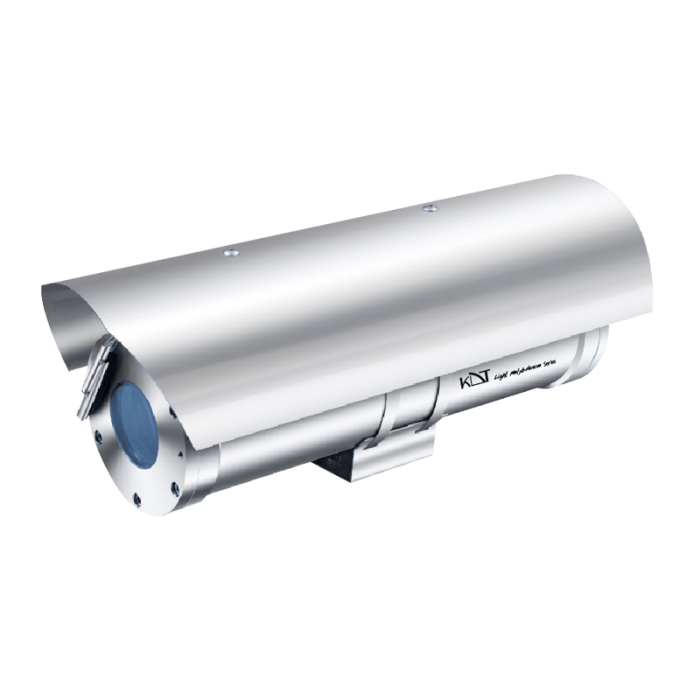

KI-AXZ100LM20A-TS
2MP Anti Explosion Network Camera
> 2MP Cmos Sensor (1/2.7”)
> 2.8~12 mm Motorized Lens
> H.265, H.264, MJPEG
> 30fps@(1920×1080), 30fps@(1280×960), 30fps@(1280×720)
> Triple Stream (Code Rate: 32kb-8mb)
> Support PoE
> IP68, IK10, EX Protection, 3KV Surge Protection
شرایط گارانتی :
> دو سال گارانتی نقره ای بدون قید و شرط کی دی تی
> سه سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 2MP Progressive scan Cmos Sensor (1/2.7”) |
| Lens Mount |
N/A |
| Lens |
2.8~12 mm Motorized |
| Resolution |
1920x 1080 (2MP) |
| Angle of View |
H-FOV: 112°~28° , V-FOV: 60°~15° , D-FOV: 146°~33° |
| Available IR Range | N/A |
| D/N Filter | IR Cut Filter Switch (ICR) |
| Min Illumination | Color: 0.01 Lux(AGC on) – B/W: 0.0 Lux(F1.6, AGC ON) |
| Night Light | Color /IR |
| Picture Adjust | |
| Picture Function | 120dB WDR, BLC, HLC, ROI, 2D/3D DNR |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control |
Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711A, G.722.1, G.7726, MP2L2 |
| Frame Rate | 30fps@(1920×1080), 30fps@(1280×960), 30fps@(1280×720) |
| Transmission Stream | Triple Stream (Code Rate: 32kb-8mbps) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Web Viewer | Multi Browser |
| Function | |
| Recording | FTP, NVR, CMS |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | Motion Detection |
| Event Action | N/A |
| Intelligent Function | N/A |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | 1 x Audio Out, 1 x Audio In (Optional) |
| Alarm | 1 x Alarm Out, 2 x Alarm In (Optional) |
| CVBS | Yes (Optional) |
| Power | PoE LAN / Power IN |
| Control | 1 x RS485 (Optional) |
| Memory Slot | Yes – Micro SD Slot (256 Gb Max) (Optional) |
| Camera Housing Box |
|
| Type |
Explosion Proof |
| IP Rating |
IP68, IK10, EX Protection, 6KV Surge Protection |
| Housing |
Stainless Steel 304 (optional 316L) |
| Cooling Water |
N/A |
| Cooling Air |
N/A |
| Sun-Shield |
YES / (Optional) |
| Bracket |
YES / Stainless Steel 304 / 2.5 Kg / Wall or poll |
| EX Flexible Tube |
YES / Explosion Proof Cable / 1500 mm |
| Ex Cable Gland |
YES / Explosion Proof Cable Gland |
| General | |
| Power Supply |
DC24V, AC24V, AC220V |
| POE Supply | IIEEE802.3bt-Max 60 Watt |
| Web Language | English |
| Dimension | 524*215 mm |
| Package Weight |
12.5 kg |
| Operation Humidity | Max Up to 95%RH(Non Condensing) |
| Operation Temp | -48°C ~ +60°C |
| Certificate Of Case |
|
| Certificate Mark |
EX IIC T6 GB / EXT D A21 IP68 T80°C |
| Certificate Number | CNEx16.2708 |
| Guarantee | |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
