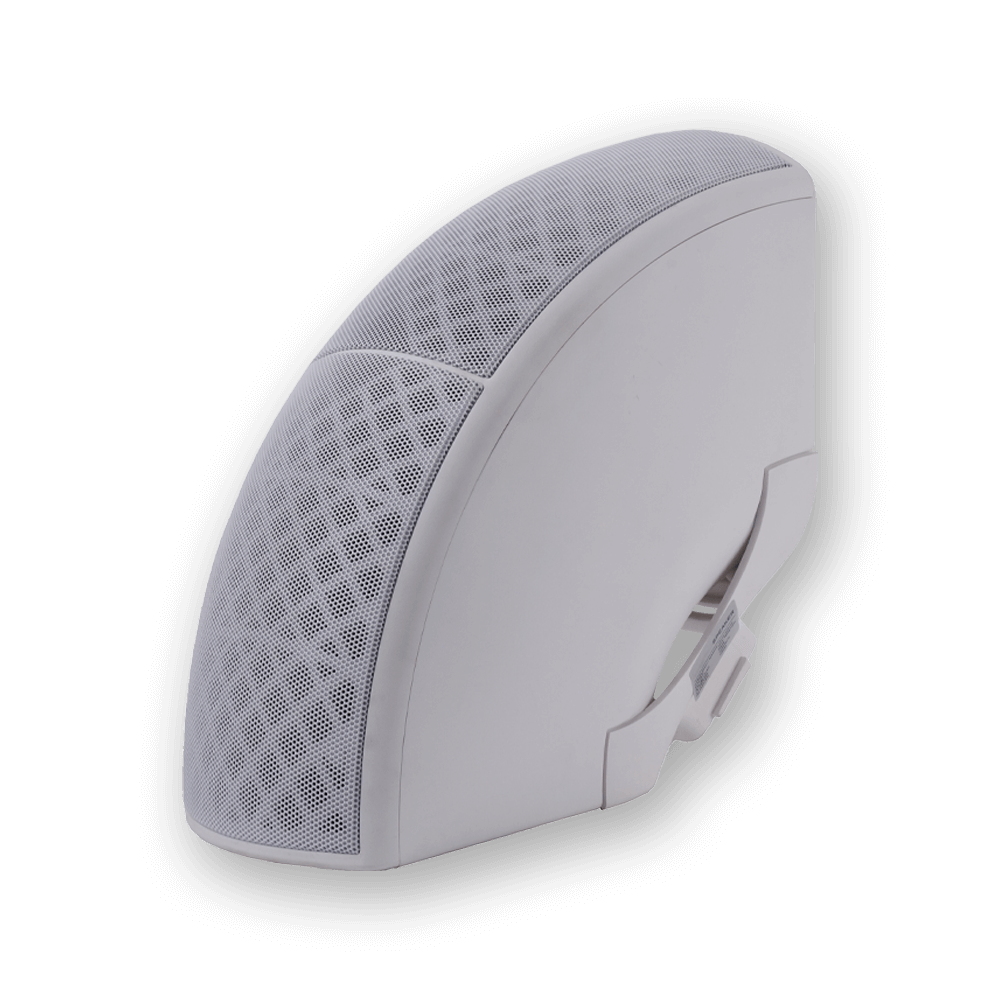

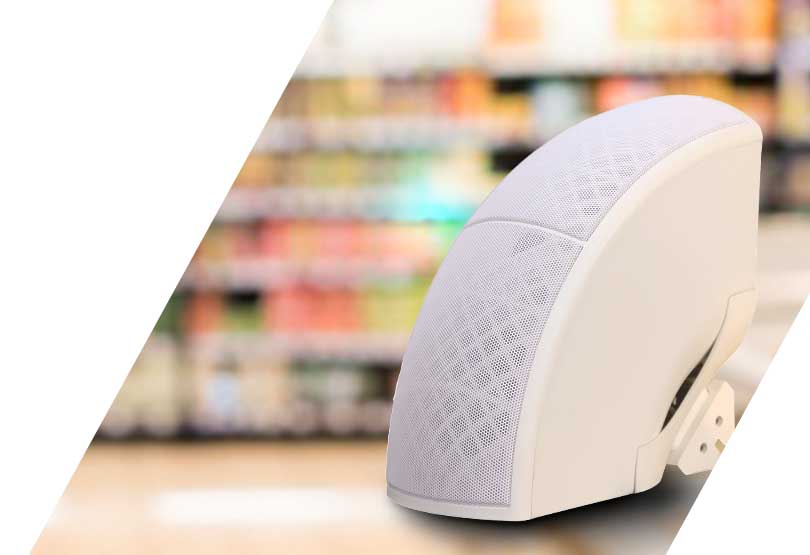

KA-iWD30P
TPA3118D2 Texas Instruments
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
اسپیکر کی دی تی مدل KA-iWD30P
عملکردهای اصلی:
- ارتباط از طریق LAN / WIFI
- قابلیت تعریف اکانت SIP
- کارت حافظه داخلی 64 گیگا بایت
- ارتباط با انواع سرور PBX / KDT VOIP Server / ASTERISK / FREEPBX
- دارای وب اپلیکیشن جهت تنظیمات و مانیتورینگ بلندگو و کنترل پخش
- قابلیت آپلود مستقیم فایل صوتی و پخش از طریق وب اپلیکیشن بلندگو
- پاسخ فرکانسی از 20 هرتز تا 100 کیلو هرتز برای پخش از کارت حافظه
KA-iWD30P
IP SPEAKERS
- PSRR( db ): 60
- Output Power: 45
- Watt: 30W
- OHM: 8
- Size: 6 inch
- Bitrate: up to 128K bit
- Network: 1 RJ45 (10M / 100M) Ethernet Port
- Cheapset: TPA3118D2 Texas Instruments
- Audio: Audio in (optional)
- Alarm: Alarm In (optional)
- Power: PoE LAN, DC In
- Web Language: English, Persian
- Product Guarantee: 2 Years Silver Guarantee
شرایط گارانتی :
- دو سال گارانتی نقره ای بدون قید و شرط کی دی تی
- سه سال ضمانت پایداری کیفیت صدا
| AMPLIFIER | |
| Cheapset | TPA3118D2 Texas Instruments |
| Architecture | Class-D |
| PSRR( db ) |
60 |
| THD+N@1kHz | 0.1 |
| Output Power |
45 |
| Load (Min) |
8 ohm |
| Speaker | |
| Watt | 30 W |
| OHM | 8 |
| Range | Middle |
| Size | 6 inch |
| Load Rating | 30 W |
| Transformer Tapping | 30 / 20 / 10W(100V) / 30 / 15 / 10.5W(70V) |
| Frequency Range | 75 / 20 KHz |
| SPL(@1W/m ) | 89 dB |
| Woofer and Impedance | Dual |
| Tweeter and Impedance | 1’’ Silk Dome |
| Audio Compression | G.711A, G.711U, SIP |
| Bitrate | up to 128K bit |
| Transmission Stream | Local USB – Network Control |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, DNS, RTP, NTP, UPnP, UDP, Multicast |
| Compatibility | SDK, API , SIP |
| Sound | |
| Playing | FTP, NVR, CMS, VMS, NAS, SD Card, USB |
| Playing Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function For KDT CMSs , KDT NVRs |
| Event Action | Alarm Triger |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Audio in (optional) |
| Alarm | Alarm In (optional) |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button |
Yes |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) |
| General | |
| IP Rating | IP44, 6KV Surge Protection |
| Power Supply | DC 17 ~ 22 V 2A |
| POE Supply | IEEE802.3at – Max 30 Watt |
| Web Language | English, Persian |
| Weight | 2.5 Kg |
| Operation Humidity | Humidity 90% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Dimension | 200*200*170 mm |
| Material, Colour | ABS White |
| Guarantee | |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
توضیحات
Description /KA-iWD30P
