KP-4804H5SM3U
PoE Switch, 52 Port
Gigabit Ethernet (10/100/1000)
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service

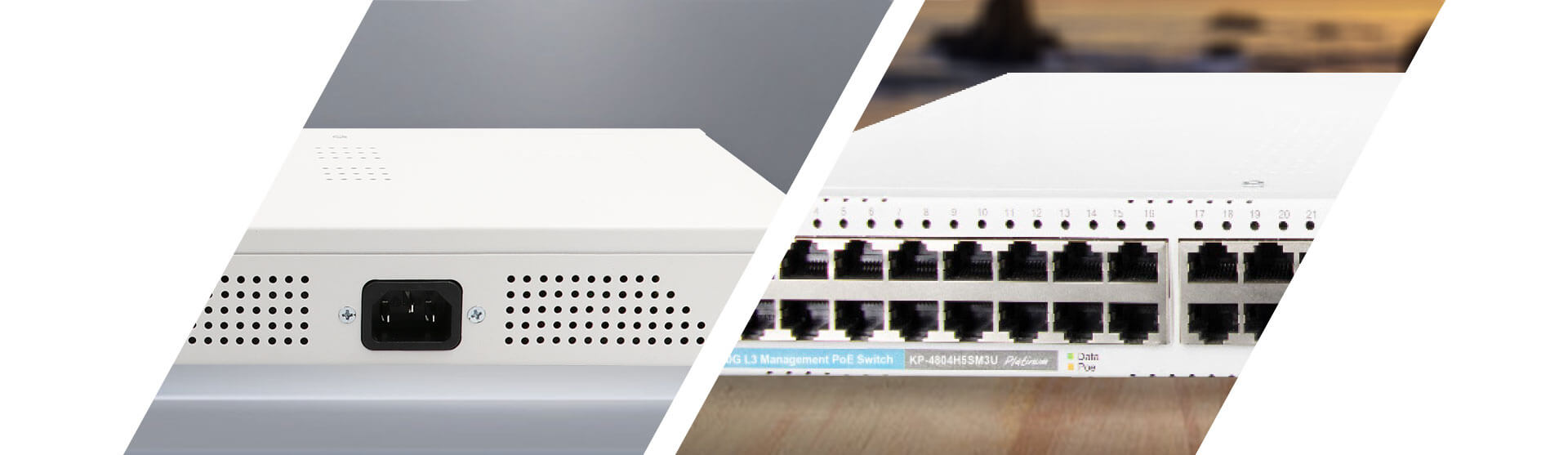

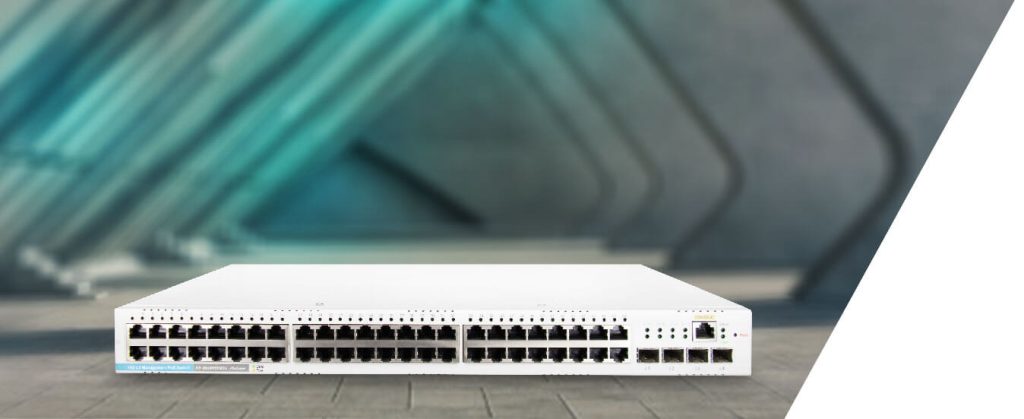

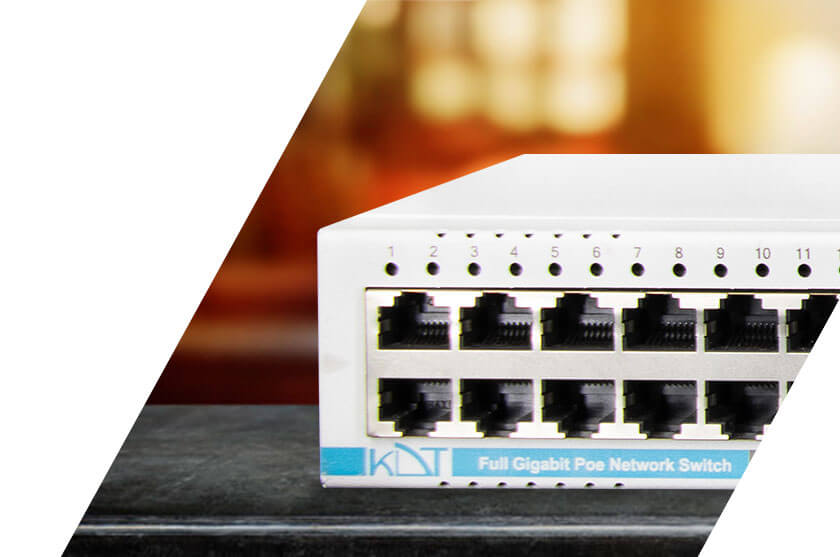

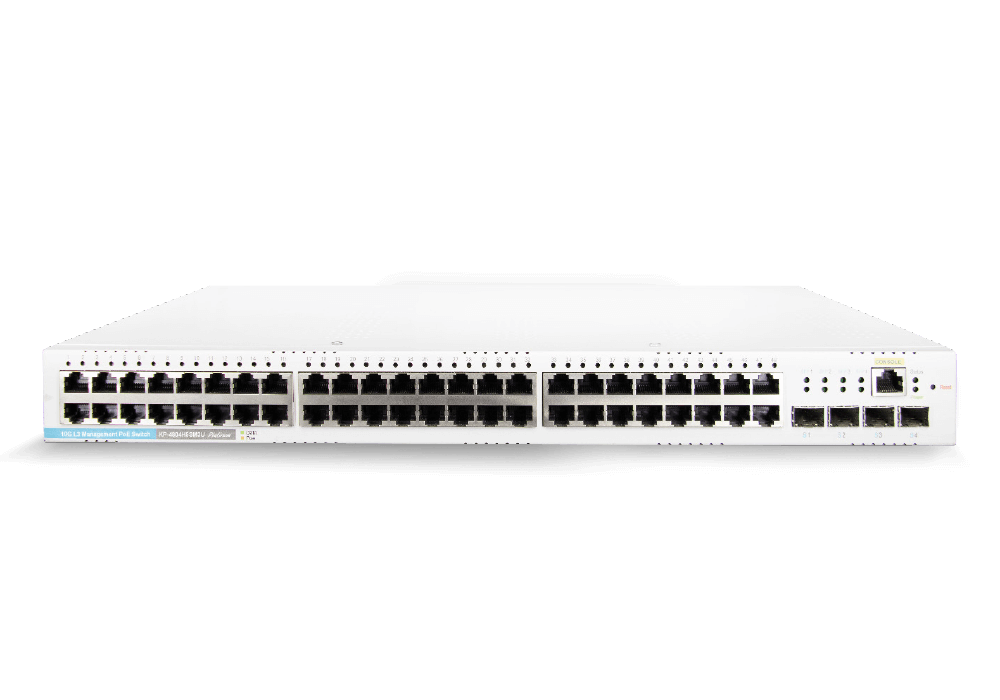

KDT PoE Network Switch model KP-4804H5SM3U
Main Functions:

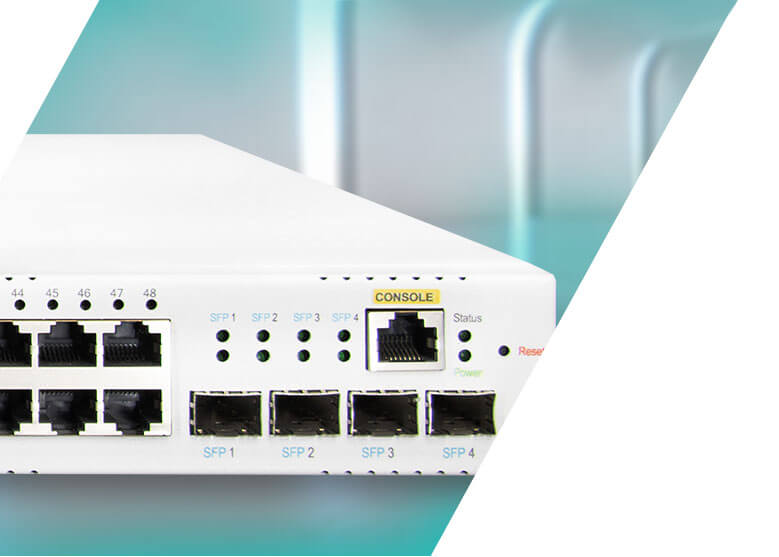

> It features 4 SFP+ UP-Link ports.
> دارای 48 پورت PoE 10/100/1000
> Display of port status via LED
> Power transmission over the network up to 120 meters.
> It has a power output of 1200 watts.
> Device configuration capability via web interface.
> Configuration capability via Console and Telnet ports
> Supports Layer 3 protocols.
KP-4804H5SM3U
PoE Switch, 52 Port, SFP+ UP-Link
> 48 Gigabit RJ45 PoE Port
> 4 SFP+ (10Gigabit) Uplink Port
> 1200 Watt
> 176Gb Internal Bandwidth
> Realtek Processor
> PoE Distance up to 120m
> Metal Case
Other advantages:
> Unique hardware for stability under all conditions
> The first Iranian product with the CE European standard mark
> Ability to install the device in a rack (having ears)
> Possesses ISO 9001, 10002, and 10004 certifications.
> Body coated with electrostatic paint
> Compatibility with all IEEE802 standards
> All-metal body
Warranty conditions:
> Three years of unconditional Platinum warranty from KDT
Includes: water erosion, breakage, impact, damage caused by lightning, rust, electricity fluctuations, other incidents and injuries.
| Interfaces |
|
| Total Port |
52 Ports |
| Max POE Output |
1200Watt |
| POE Port Control |
Texas Instruments Chipset |
| Fast RJ45 POE Port |
N/A |
| Gigabit RJ45 POE Port |
48 Port |
| Fast RJ45 Uplink Port |
N/A |
| Gigabit RJ45 Uplink Port | N/A |
| Gigabit SFP Uplink Port | 4 |
| Combo Uplink Port |
N/A |
| Network Performance |
|
| Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at(Up to 30Watt), IEEE802.3bt |
| Protocols | CSMA/CD |
| Router | N/A |
| Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full Duplex); 1000BASE-TX: 1488000bps/port |
| Cabling | 10Base-TX: Cat 5 or above (120m) POE=120M 100Base-TX:Cat 6 UTP(100m) POE=120M 1000Base-TX: Cat 6 UTP or above (100m) POE=120M |
| Bandwidth | 176Gb Internal Bandwidth |
| MAC Table |
2Mb |
| Auto MDI-MDIX |
Yes All Port |
| Console | Yes – Web & RS232(Talent Support) Layer3 Management |
| Transfer Pattern |
Store & Forward |
| Hardware |
|
| Processore Type |
Realtek |
| LED Panel |
POE Activity / Data Activity |
| Main Board |
Double Layer |
| Case | Metal Case |
| Mounting | Rackmount |
| PD`S | |
| IP Camera |
Yes |
| IP Phone |
Yes |
| (+)5/4,(-)8/7 | *Optional |
| (+)2/1,(-)6/3 | *Yes |
| General | |
| IP Rating |
IP51 |
| Web Language |
English |
| Dimension | 443*460*45 mm |
| Weight | 4.5 Kg |
| Storage Temp |
-20°~+60°C / 10%~90%RH |
| Operation Temp |
-15°~+50°C / 10%~90%RH |
| Radiation Electromagnetic | EN55016 |
| Status | |
| LED | Ethernet Interfaces 10,000 LNK/ACT (Green), 10/100/1000 LNK/ACT (Green) PoE Ethernet Interfaces, PoE-in-Use (af/at/bt) 1000 LNK/ACT (Orange), 10/100 LNK/ACT (Green) |
| Power Supply |
|
| Power | 200~240V AC, 50~60Hz |
| Redundant |
N/A |
| LED Power |
Yes |
| Power Cable |
Available |
| Guarantee | |
| Product Guarantee |
3 Year Platinum Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
